efic 18 SEER
110V - 220V
Wi-Fi
Cooling
Heating

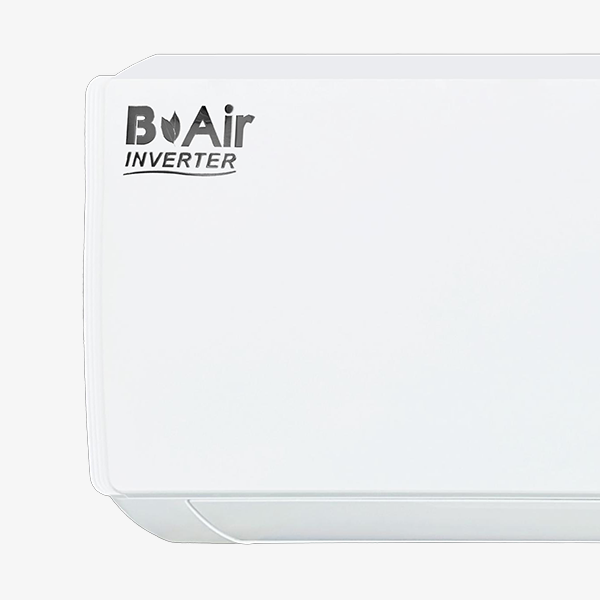

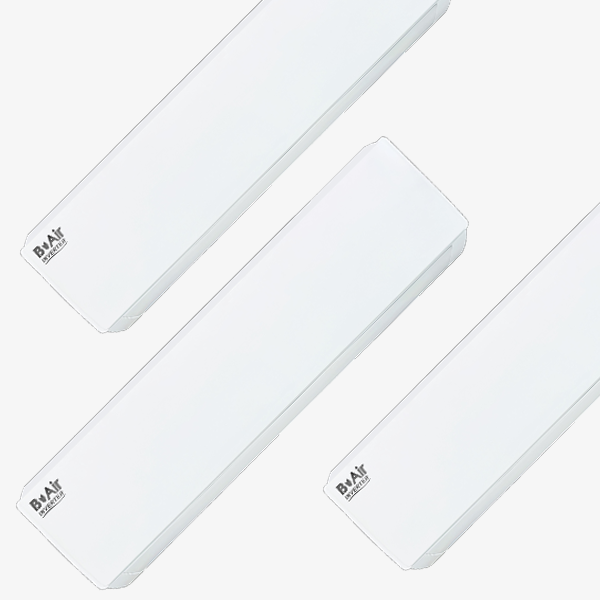

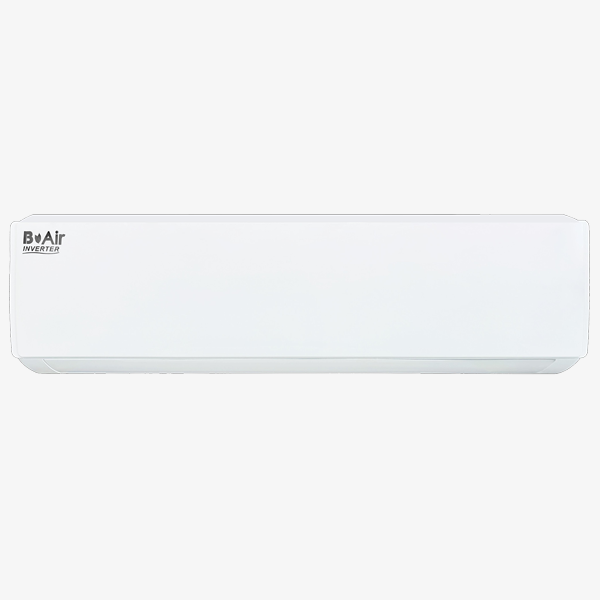

The Inverter PRO Line is the air conditioning solution that combines innovative technology with maximum energy savings, offering up to 60% energy consumption reduction. Available in cooling-only and cooling with heating options.
Available in:
1
2
tons
1200
2400
BTUS
inverterIf you want to enjoy efficient and low energy consumption climate, our air conditioners with Inverter technology are the perfect choice.
Air conditioners with Inverter technology adjust the compressor speed according to the temperature needs, which results in higher energy savings. This allows for a reduction in your energy bills in the medium term and provides a more stable operation for your equipment, saving maintenance costs and increasing its lifespan.
| Inverter PRO | BAM120CTIAX | BAM120CTIA | BAM121CTIAX | BAM121CTIA | BAM241CTIAX | BAM241CTIA | BAM120HTICX | BAM120HTIA | BAM121HTIA | BAM181HTIA | BAM181HTICX | BAM241HTIA | BAM241HTICX | BAM361HTICX | BAM361HTIA | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tons | Ton | 1.00 | 1.00 | 1.00 | 1.00 | 2.00 | 2.00 | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 2.00 | 2.00 | 3.00 | 3.00 | |
| Power Supply | V, Hz, Ph | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V,1Ph,60Hz | 208-230V~/60Hz | 208-230V~/60Hz | |
| Refrigerant | g | R410A/530g | R410A/530g | R410A/530g | R410A/530g | R410A/910g | R410A/910g | R32/640g | R410A/640g | R410A/640g | R410A/1060g | R32/1060g | R410A/1350g | R32/1350g | R32/2010g | R410A/2010g | |
| Cooling | |||||||||||||||||
| Cooling Capacity | Btu/h | 12000 | 12000 | 12000 | 12000 | 24000 | 24000 | 12000 | 12000 | 12000 | 18000 | 18000 | 24000 | 24000 | 36000 | 36000 | |
| Input | W | 1250 | 1250 | 1255 | 1255 | 2500 | 2500 | 1250 | 1250 | 1255 | 1870 | 1870 | 2500 | 2500 | 3498 | 3498 | |
| Rated current | A | 11.3 | 11.3 | 5.9 | 5.9 | 11.8 | 11.8 | 11.3 | 11.3 | 5.9 | 8.9 | 8.9 | 11.8 | 15.5 | 15.9 | 15.9 | |
| Efficiency | But/h/W | 17.00 SEER | 18.00 SEER | 17.00 SEER | 17.50 SEER | 15.50 SEER | 18.10 SEER | 17.00 SEER | 17.00 SEER | 17.50 SEER | 17.20 SEER | 18.50 SEER | 18.10 SEER | 15.50 SEER | 19.50 SEER | 16.30 SEER | |
| Max Power Input | W | 1450 | 1450 | 1600 | 1600 | 2800 | 2800 | 1500 | 1500 | 1600 | 2100 | 2100 | 2800 | 2800 | 3900 | 3900 | |
| Max Current | A | 13.0 | 13.0 | 7.3 | 7.3 | 13.5 | 13.5 | 13.0 | 13.0 | 7.3 | 12.0 | 12.0 | 13.5 | 13.5 | 17.5 | 17.5 | |
| Heating | |||||||||||||||||
| Heating Capacity | Btu/h | - | - | - | - | - | - | 12000 | 12000 | 12000 | 18000 | 18000 | 24000 | 24000 | 36000 | 36000 | |
| Input | W | - | - | - | - | - | - | 1170 | 1170 | 1170 | 1720 | 1720 | 2500 | 2500 | 3350 | 3350 | |
| Rated current | A | - | - | - | - | - | - | 10.6 | 10.6 | 5.5 | 8.1 | 8.1 | 11.8 | 11.8 | 15.9 | 15.9 | |
| COP | But/h/W | - | - | - | - | - | - | 16.00 | 16.00 | 16.00 | 16.00 | 16.00 | 16.00 | 16.00 | 16.00 | 16.00 | |
| Max Power Input | W | - | - | - | - | - | - | 1600 | 1600 | 1400 | 2500 | 2500 | 2700 | 2700 | 3500 | 3500 | |
| Max Current | A | - | - | - | - | - | - | 14.0 | 14.0 | 7.3 | 12.0 | 12.0 | 13.0 | 13.0 | 16.5 | 16.5 | |
| Indoor Unit | |||||||||||||||||
| Net Dimensions (Width*Depth*Height) | mm | 790×275×192 | 790×275×192 | 790×275×192 | 790×275×192 | 1100×333×222 | 1100×333×222 | 790×275×192 | 790×275×192 | 790×275×192 | 920×306×195 | 920×306×195 | 1100×333×222 | 1100×333×222 | 1186×340×258 | 1186×340×258 | |
| Packing Dimensions (Width*Depth*Height) | mm | 860×345×265 | 860×345×265 | 860×345×265 | 860×345×265 | 1165×405×295 | 1165×405×295 | 860×345×265 | 860×345×265 | 860×345×265 | 990×380×265 | 990×380×265 | 1165×405×295 | 1165×405×295 | 1260×430×328 | 1260×430×328 | |
| Net Weight | kg | 8.5 | 8.5 | 11 | 11 | 17 | 17 | 9.5 | 11 | 10.5 | 12.5 | 12.5 | 17 | 15 | 21 | 19.5 | |
| Outdoor Unit | |||||||||||||||||
| Net Dimensions (Width*Depth*Height) | mm | 777×290×498 | 777×290×498 | 777×290×498 | 777×290×498 | 853×349×602 | 853×349×602 | 777×290×498 | 777×290×498 | 777×290×498 | 853×349×602 | 853×349×602 | 853×349×602 | 853×349×602 | 976×421×804 | 976×421×804 | |
| Packing Dimensions (Width*Depth*Height) | mm | 818×325×515 | 818×325×515 | 818×325×515 | 818×325×515 | 890×385×628 | 890×385×628 | 818×325×515 | 818×325×515 | 818×325×515 | 890×385×628 | 890×385×628 | 890×385×628 | 890×385×628 | 1022×480×835 | 1022×480×835 | |
| Net Weight | kg | 21 | 21 | 25 | 25 | 31.5 | 31.5 | 26 | 25 | 25 | 30.5 | 29 | 34.5 | 36 | 52 | 50.5 | |
| Connecting Pipe | |||||||||||||||||
| Gas | in | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 5/8 | 5/8 | |
| Liquid | in | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | |
